As a mathematician and sculptor, I try to create artworks that are infused with an underlying sense of pattern and structure. See [1]-[9]. I hope that viewers of my sculpture will consciously or unconsciously develop an appreciation for the power of mathematical ideas to enrich art. Ideally, they will be inspired to try their own explorations in the area of mathematical art. This paper considers one sculpture in some detail and provides instructions for a paper model that lets one explore its structure.

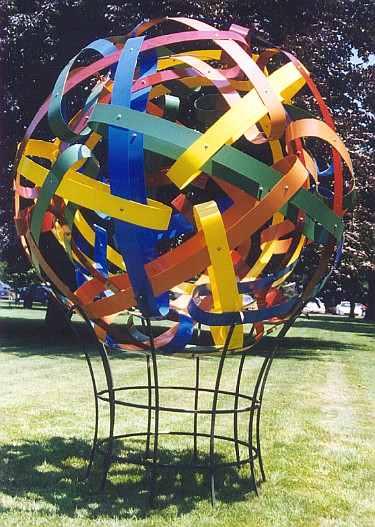

Figure 1 shows a sculpture I call Loopy, made of painted aluminum. It is five feet in diameter, and stands eight feet tall on its steel base. I created it for an outdoor setting at a local hospital; it is intentionally colorful and joyous. There are thirty identically shaped loops, six in each of five bright colors: red, orange, yellow, green, and blue. My vision of the form is abstract; some viewers tell me they see it as a giant brain, but that was not a conscious intention of mine. ("No, it isn't a self-portrait," I tell people.)

On examination, most viewers can discover and articulate essential aspects of the structure and color pattern: Each loop crosses four loops of the four other colors. The ends of the loops always meet in groups of three of the same color. Around each five-sided opening, there is a spiral of five loops, one in each of the five colors. No loop crosses another of the same color. Each bolt is the both the vertex of a regular pentagon and the midpoint of the side of an equilateral triangle.

Each loop began as a ten-foot long strip of aluminum that was drilled for bolt holes, rolled into a loop, primed, painted, and bolted into the assembly. Thus, the thirty strips together sum to 300 feet, the length of a football field. While this arithmetic may be impressive in its own way, there is a different sort of mathematical analysis that I wish to emphasize.

Another sort of calculation one could make concerning the sculpture is to determine the angle at which the loops cross. Knowing only that the bolt holes are equally spaced and each loop is part of a great circle, it is possible with a bit of spherical trigonometry to calculate the angle at which loops meet. Pleasantly, it is not necessary to solve this, as the components automatically position themselves at the proper angle. This is analogous to cutting out twenty equilateral triangles and taping them together into an icosahedron. One does not need to know the dihedral angle of an icosahedron beforehand; the model automatically rigidifies to the necessary dihedral angles as the last edges are joined.

The mathematical properties that I consider most worthy of attention involve the structure and coloring. I do not know that I can articulate the intuitive reasons why I feel they are worth study. Perhaps the sculpture itself addresses that ineffable issue. But I do predict that if the reader or a student makes the following paper model, they will come to share some of this understanding. Loopy has a two-layer structure, which for architectural simplicity, this paper model simplifies to just one layer.

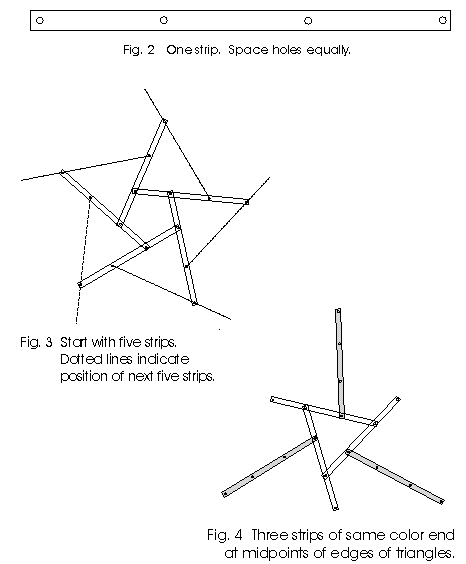

Cut out thirty strips of heavy paper, e.g., poster stock. Eleven inches by one-half inch is a convenient size if one starts with U.S. standard 8.5x11 inch paper. A paper cutter makes quick work of this. There should be six strips in each of five different colors. Use a hole puncher to make four equally spaced holes in each, as shown in Figure 2. Paper fasteners will be used to join the strips. They allow free rotation, and the proper angle will form on its own.

Begin by making a fivefold spiral as in Figure 3, using five different colors. The placement of the next five strips is indicated by the dotted lines. Note that the pentagon edges are one unit long but the triangle edges are two units long. Each strip has two "end holes" and two "inner holes." Each paper fastener connects one end hole and one inner hole. For a maximally attractive model, consistently place the end hole inside (underneath) the inner hole it joins. The assembly and coloring of the remainder of the model is then determined by logically keeping in mind three rules:

1. Every opening is either a pentagon with edge length one or a triangle with edge length two;
2. Each pentagon is surrounded by five triangles;
3. The three strips that touch any triangle's edge midpoints are of a single color. See Figure 4.

For a well-rounded education, it is important that students develop the ability to discover new truths on their own. Let me suggest a few ideas for those who wish to start with this model and then explore further: Loopy has small pentagons and large triangles; try making the pentagons twice the edge length of the triangles. Notice you can start with a left-handed or right-handed spiral of five strips; what happens if you turn your model inside out? Or, try making a four-color structure with squares instead of pentagons. Or, design an analogous structure in which all the openings are triangles. Or, explore other color patterns. Can you generalize any of these models to a structure with hundreds of components? These questions might engage curious students.

For me, one key aspect of the math-art connection is that both can concern space, and patterns or structures in space. Both also involve aesthetics in a hard to define manner, which involves much subjectivity. But a theorem or proof of Euclid's can be simply beautiful, and a mathematician sees this as clearly as an artist sees that a line by Leonardo can be simply beautiful. Both fields also involve creative individuals who find satisfaction in creating and communicating new forms that are the outward expression of their inner visions. I feel Loopy and my other constructive geometric sculptures are somewhere in this common tradition, and I hope viewers can appreciate the synthesis. Mathematics is about patterns, structures, and relationships of all kinds. Art as much as anything can bring this out.

References

[1] G.W. Hart, Geometric Sculpture, http://www.georgehart.com/

[2] G.W. Hart, "Icosahedral Constructions," in Proceedings of Bridges: Mathematical Connections in Art, Music and Science, Southwestern College, Winfield, Kansas, July 28-30, 1998, pp. 195-202.

[3] G.W. Hart, "Zonish Polyhedra," Proceedings of Mathematics and Design '98, San Sebastian, Spain, June 1-4, 1998.

[4] G.W. Hart, "Reticulated Geodesic Constructions," Computers and Graphics, 24(6), Dec. 2000, pp. 907-910.

[5] G.W. Hart, "The Millennium Bookball," in Proceedings of Bridges 2000: Mathematical Connections in Art, Music and Science, Southwestern College, Winfield, Kansas, July 28-30, 2000.

[6] G.W. Hart, "Sculpture Based on Propellorized Polyhedra," Proceedings of ISAMA 2000, International Society of Art, Math, and Architecture, Seattle, August, 2000.

[7] G.W. Hart, "Computational Geometry for Sculpture," Proceedings of ACM Symposium on Computational Geometry, Tufts University, June 2001.

[8] G.W. Hart and Henri Picciotto, Zome Geometry: Hands-on Learning with Zome Models, Key Curriculum Press, 2001.

[9] G.W. Hart, "The Geometric Aesthetic," in The Visual Mind 2, Michele Emmer (ed.), MIT press, to appear.
