12-Part Galactic Puzzle

George W. Hart


Other Puzzles



This puzzle is composed of twelve identical laser-cut wood components, which assemble and interlock.
The above view is looking down a 5-fold axis.



Here is the parts template.  It is like a five-armed galaxy, so I call this the Galactic Puzzle.

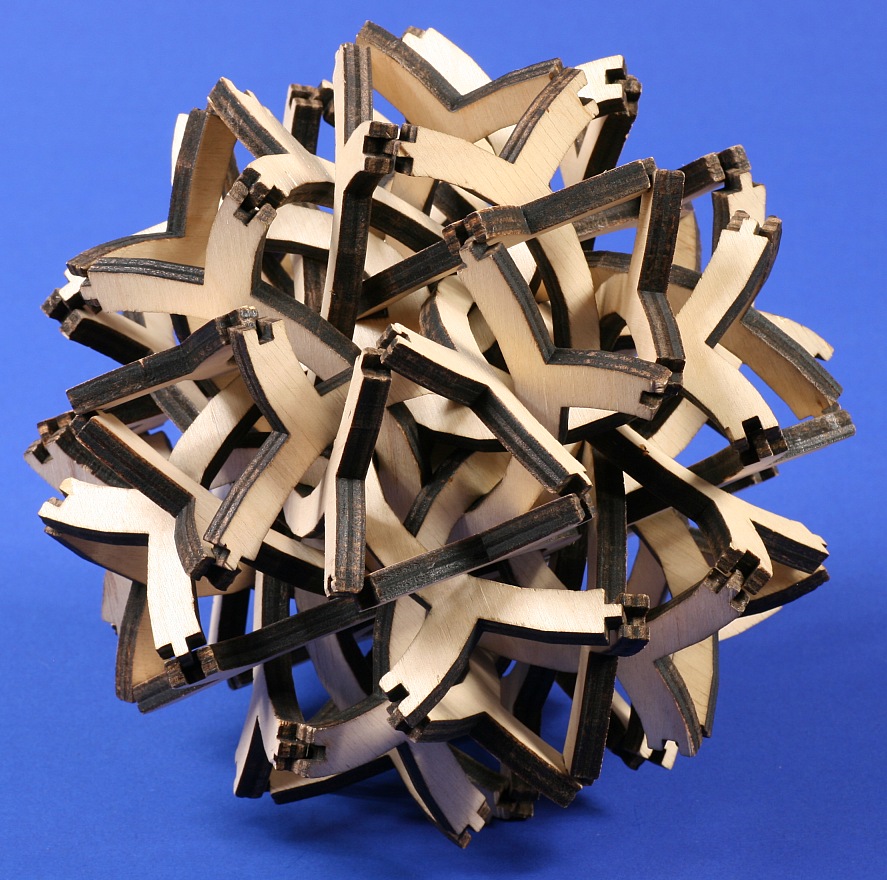

This photo shows the view along a 3-fold axis.

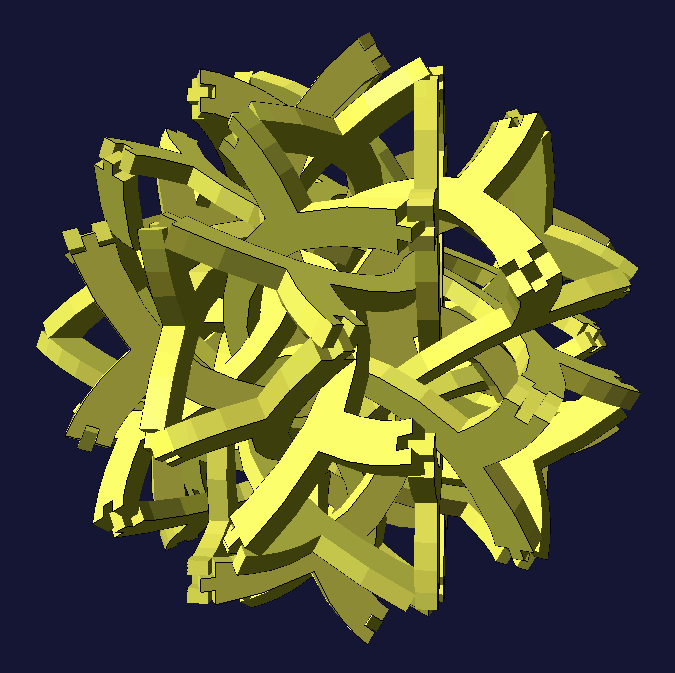

Above is a computer rendering of that solution.




Cleverly, the same pieces can be assembled into a second, looser arrangement.

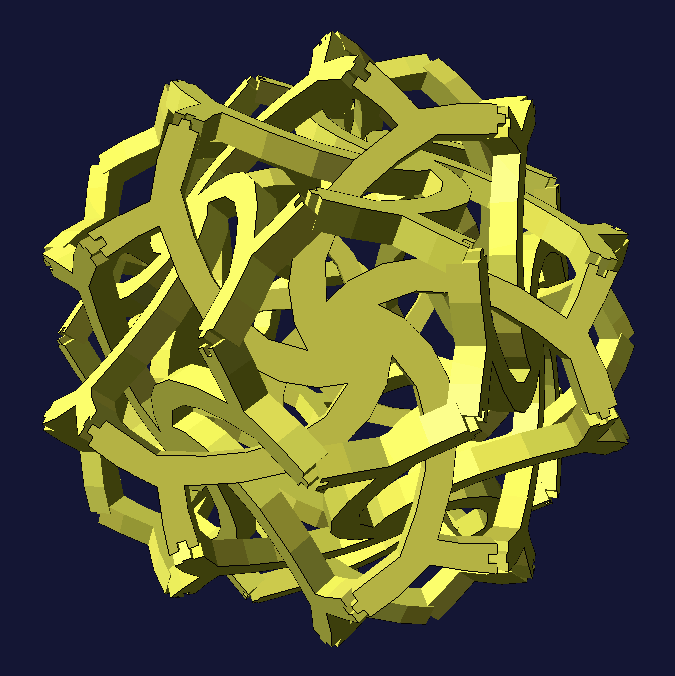

Above is a rendering of it.

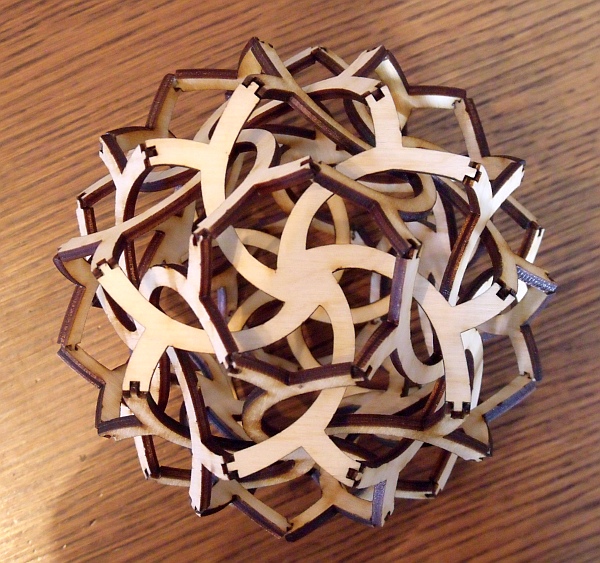

And here are two photos of it, as constructed by Jason Thwaits.
It is made from laser-cut plywood, using the template above.

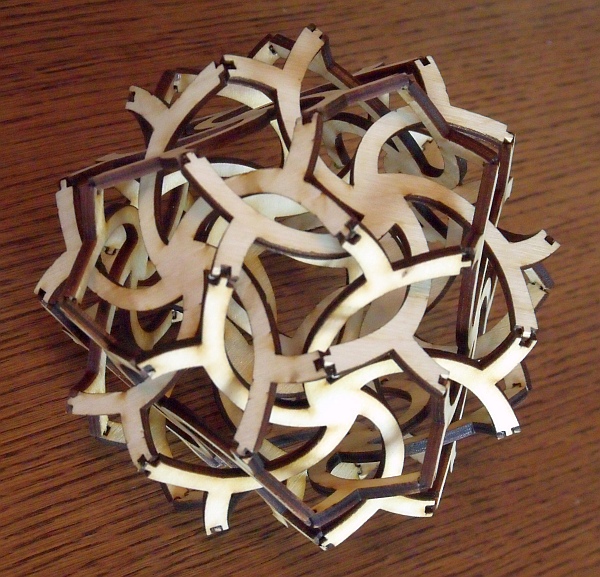

And here it is again, viewed along a 3-fold axis.
